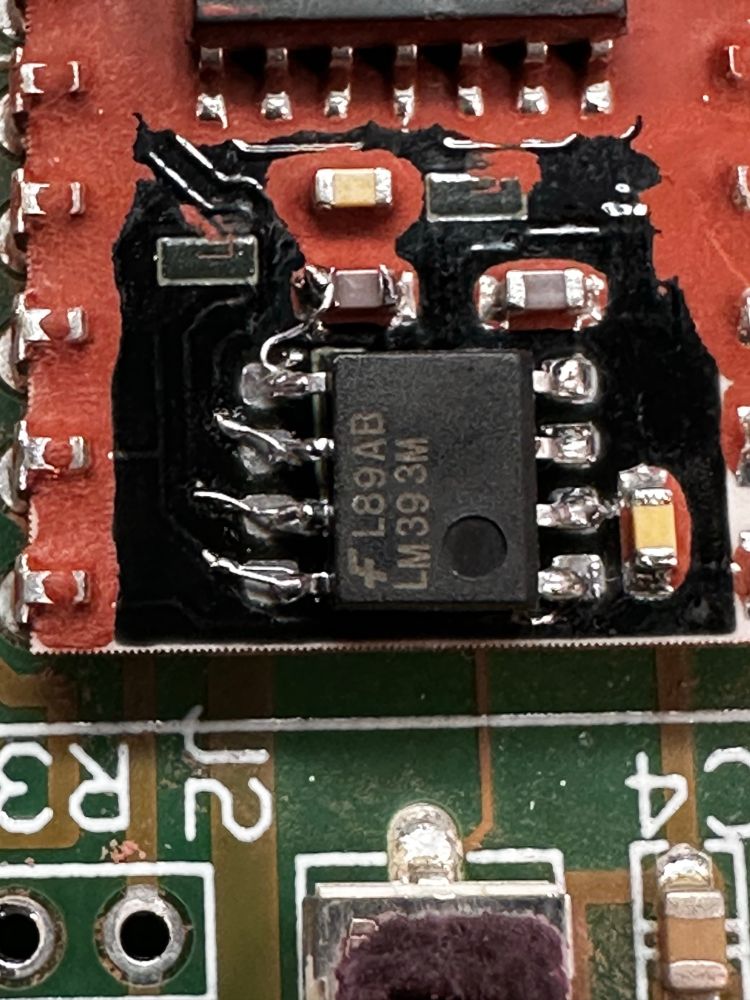

Replacing components on ceramic substrate is a pain in the butt, cannot recommend.
September 5, 2025 at 9:17 PM
Replacing components on ceramic substrate is a pain in the butt, cannot recommend.
DIY project I’m currently working on. It’s an isolated variac power supply with AC and DC output. Added a gearmotor to the variac cuz turning it by hand would be waaaay too primitive. Just need to finish wiring it. The control unit goes on my workbench, the transformer enclosure goes underneath.
July 21, 2025 at 2:23 AM
DIY project I’m currently working on. It’s an isolated variac power supply with AC and DC output. Added a gearmotor to the variac cuz turning it by hand would be waaaay too primitive. Just need to finish wiring it. The control unit goes on my workbench, the transformer enclosure goes underneath.
This came out of an old Allen Bradley HMI thingamabob. I know this is some specialized piece of kit but could they make the layout any less intuitive?
June 26, 2025 at 3:26 AM
This came out of an old Allen Bradley HMI thingamabob. I know this is some specialized piece of kit but could they make the layout any less intuitive?
We have a Trane furnace in our house. This is what the filter looks like after it’s been in service for a while. It gets sucked against the blower housing which blocks airflow, rendering a significant amount of the filter’s area useless. Is it just me or is that stupid design?
June 8, 2025 at 6:30 AM
We have a Trane furnace in our house. This is what the filter looks like after it’s been in service for a while. It gets sucked against the blower housing which blocks airflow, rendering a significant amount of the filter’s area useless. Is it just me or is that stupid design?
The company I work for has these custom made fuse testers. It’s literally nothing more than a fancy continuity tester. These things are needlessly over-engineered, I absolutely love it!
May 21, 2025 at 3:59 AM
The company I work for has these custom made fuse testers. It’s literally nothing more than a fancy continuity tester. These things are needlessly over-engineered, I absolutely love it!
Nothing wrong with that, right?
May 11, 2025 at 6:36 AM
Nothing wrong with that, right?
How did this even happen?
May 5, 2025 at 3:37 AM
How did this even happen?
Might be too late for this servo drive to see the doctor?
April 26, 2025 at 4:19 AM
Might be too late for this servo drive to see the doctor?
A while back I found some orange stuff inside this chunk of aluminum. Anyone know what that that could be?
February 16, 2025 at 11:54 PM
A while back I found some orange stuff inside this chunk of aluminum. Anyone know what that that could be?
Blown electrolytic caps are nothing new but I haven’t seen this level of destruction before. They are 1000uF @ 400V each, pulled from a VFD.
February 16, 2025 at 4:22 AM
Blown electrolytic caps are nothing new but I haven’t seen this level of destruction before. They are 1000uF @ 400V each, pulled from a VFD.
Today in the drive repair shop: VFD with carbon tracking underneath the terminal block (likely caused be fluid ingress). A path was created between HV+ (DC bus) to ground.
January 15, 2025 at 2:55 AM
Today in the drive repair shop: VFD with carbon tracking underneath the terminal block (likely caused be fluid ingress). A path was created between HV+ (DC bus) to ground.
Great idea, let’s glue electrolytic caps to heat producing devices. This is the low-voltage power supply inside a variable frequency drive, a pricey piece of industrial equipment that came in for repair. There’s so much space on that PCB and yet, this…
December 27, 2024 at 4:12 AM
Great idea, let’s glue electrolytic caps to heat producing devices. This is the low-voltage power supply inside a variable frequency drive, a pricey piece of industrial equipment that came in for repair. There’s so much space on that PCB and yet, this…
Hello internet, my name is Whiskey and really enjoy being a total nuisance.
December 15, 2024 at 5:08 AM
Hello internet, my name is Whiskey and really enjoy being a total nuisance.
I brought this fine specimen home in April, no clue if it works. Haven’t even looked inside the thing yet. Might make for a fun winter project, it would be nice to have an analog scope in the lab again…
November 25, 2024 at 4:10 AM
I brought this fine specimen home in April, no clue if it works. Haven’t even looked inside the thing yet. Might make for a fun winter project, it would be nice to have an analog scope in the lab again…
